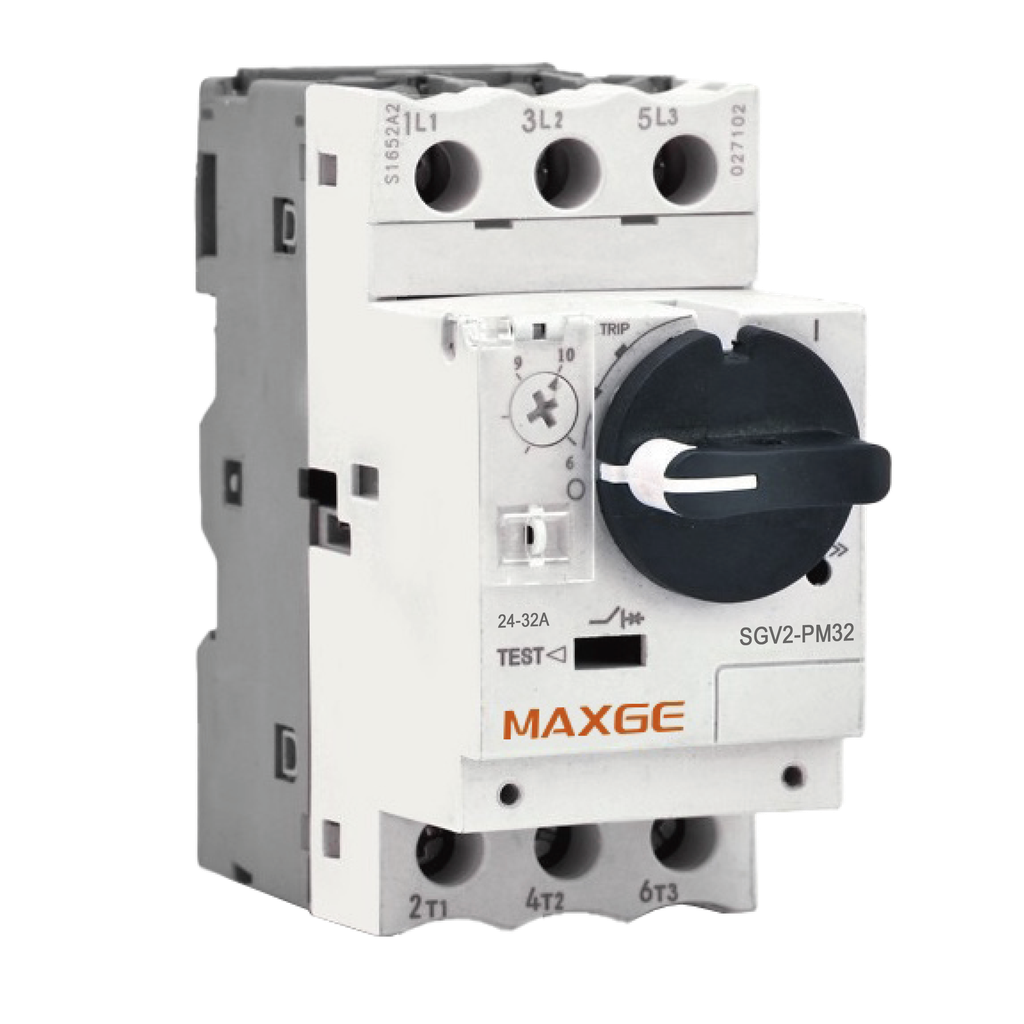

Motor circuit breakers with rotary control from 0.06 to 15kW / 400V (SGV2PM)

• Thermal trip / magnetic trip adjustment
  • 0,1 ... 0,16A / 1,5A
  • 0,16 ... 0,25A / 2,4A
  • 0,25 ... 0,4A / 5A
  • 0,4 ... 0,63A / 8A
  • 0,63 ... 1A / 13A
  • 1 ... 1,6A / 22,5A
  • 1,6 ... 2,5A / 33,5A
  • 2,5 ... 4A / 51A
  • 4 ... 6,3A / 78A
  • 6 ... 10A / 138A
  • 9 ... 14A / 170A
  • 13 ... 18A / 223A
  • 17 ... 23A / 327A
  • 20 ... 25A / 327A
  • 24 ...32A / 416A
• Type of applications
  • Severe

This combination does not exist.

Referencia: SGV2-PM01
