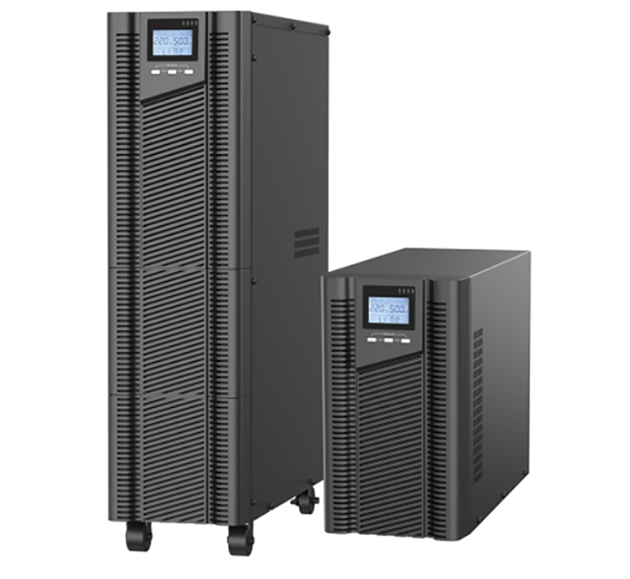

UPS On-line up to 30kVA (MYON)
Referencia: MYON-3310
Double conversion online, pure sine wave, 3/3 phase, high reliability, overall system efficiency >95%.
Suitable for corporate networks, hospital equipment, servers, banking, security and emergency systems, education, e-commerce, transportation, laboratories, etc.
• LCD Display
Input and output information, bypass status, ECO mode, load status, receiver status, rectifier status, and temperature
With alarm indication
• Input
Phase-to-phase voltage: 304 to 478VAC
Frequency: 40 to 70Hz
Power factor: >0.99
• Output
Adjustable voltage: 380/400/415VAC
Voltage accuracy: ±1% (at static load)
50Hz mains synchronization: 45 to 55Hz
Frequency with battery: 50/60Hz ±0.1%
Distortion: <1% (with linear load)
Crest factor: 3:1
Efficiency: >95%
Permissible overloads (normal mode): 110% at 60m, 110% to 125% at 10m 125% to 150% 1m, >150% 0.2s
Transfer times:
Static bypass mode: 0ms
Bypass/frequency converter/battery mode: 0ms
